The A-200s Stereo Amplifier

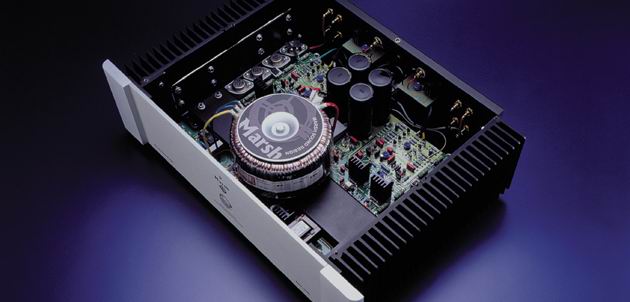

The A200S gives out 120 watts per channel, for a total of 240 watts.The A200S is designed with a High End circuit with very low-noise FETs. A balanced, complimentary differential input circuit makes the A200S even more linear than other systems.The output stage has two pairs of high current, paralleled, bi-polar power transistors to meet the peak current demands of any speaker system. Dynamic transient sounds come through with full impact and clarity. Servo-controlled, direct-coupled circuitry is used throughout the circuitry for extremely high resolution sound.
 Technical Specification Top
 Power output @ 120Watt Max. per Channel both channels driven continuously
   into 8 ohms load at 1 kHz
   @ 190Watt Max. per Channel both channels driven continuously
   into 4 ohms load at 1 kHz
 Frequency response +0/-0.2 dB at 1W to 100W output into 8 Ohms
   loads -1 dB at 80 kHz
 Total harmonic distortion THD+Noise < 0.02% from 20Hz to 20 kHz into 8 Ohms loads
   (< 0.01% at 1 kHz.)
 Input Impedance 56k Ohms Unbalanced, 4 kOhms Balanced input
 Input Sensitivity 1 Vrms for Unbalanced and Balanced Input mode
 Power Requirement (AC) AC 110-120V 60Hz
 Power consumption 600 W Max.
