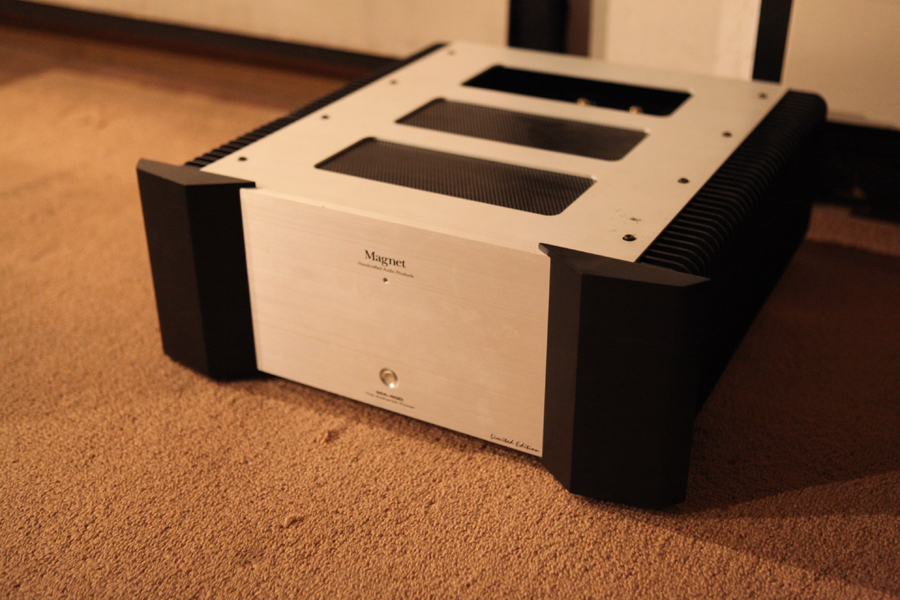

MA-400 Limited Edition

The MA-400 Limited Edition utilizes Full Complementary Symmetrical Push-pull and direct coupling with JFET differential  input circuit. The Heavy duty design includes high capacitance power supplies, RFI filter, Heavy speaker’s binding post and massive aluminum chassis. These  are just some of the High end features. The combination of special  remote on/off function, output over-current protection and DC fault protection make the MA-400 Limited Edition exceptionally good value in High end Audio.

 Technical Specification Top
 Power output 200 Wrms (MAX) both channels driven continuously into 8 ohms
 Frequency response 20-20000 Hz, +0/- 0.2 dB at 1 W to 200 Wrms output into 8 Ohms
 Total harmonic distortion THD+Noise < 0.02% @ 20Hz to 2kHz
   < 0.01% @ 1kHz
 Signal to noise Ratio < -100dB (Ref on 200w)
 Input Impedance 56 kOhms Unbalanced
   4 kOhms Balanced
 Input Sensitivity 1.4 Vrms
 Output Impedance 0.01 Ohm
